Metal Detecting Separators SMS

Share to:

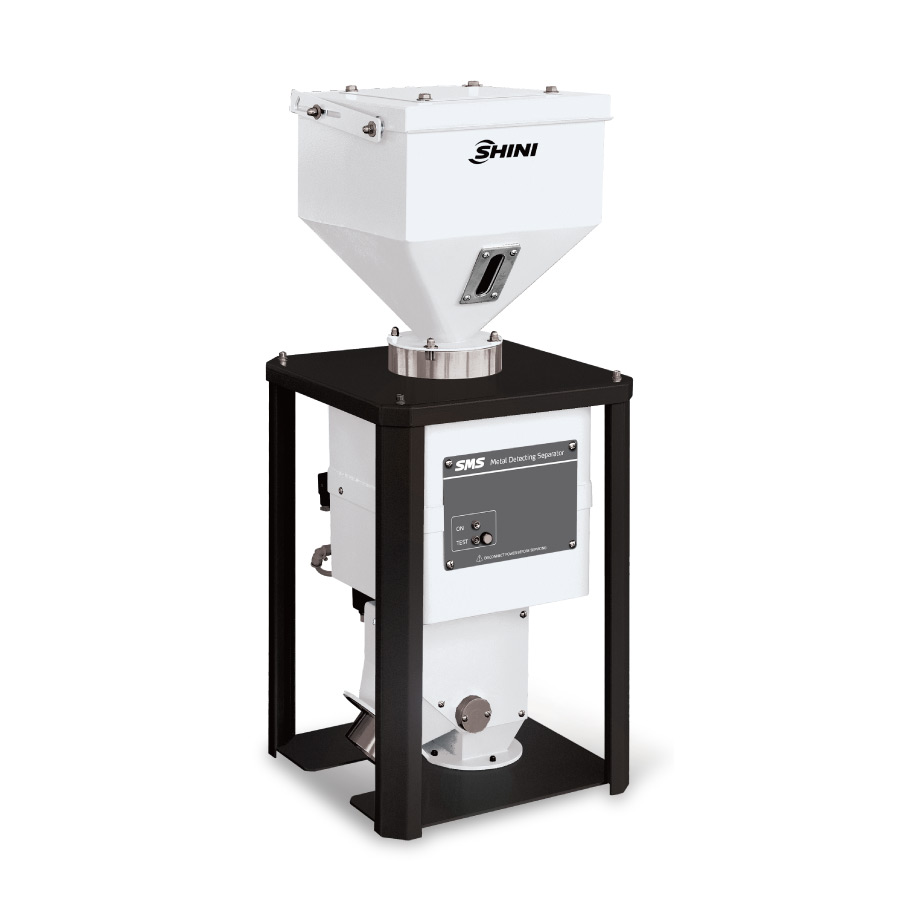

Metal detecting separators SMS

SMS series metal detecting separators are highly sensitive and accurate in detecting and separating metal grains, such as steel, iron, copper, aluminum, lead, tin, etc.

Its principle is when metal impurities passing through it, electrical detector can send a signal to control board to open the valve to discharge the impurity materials. Pneumatic discharging system takes little space and ensures good performance. It can be installed directly on injection molding machine or (extruders) hoppers to protect the screw of machine from the damage caused by hard metals. Its processing capacity is ranging from 600L/hr to 3,000L/hr to meet any specific requirements.

Feature

1. Fast separating all the metals from the material.
2. The minimum detectable diameter of the iron balls can be as small as 0.5mm.
3. Compact design, easy to install and simple to operate.
4. Standard equipped with a 12 liters hopper.
