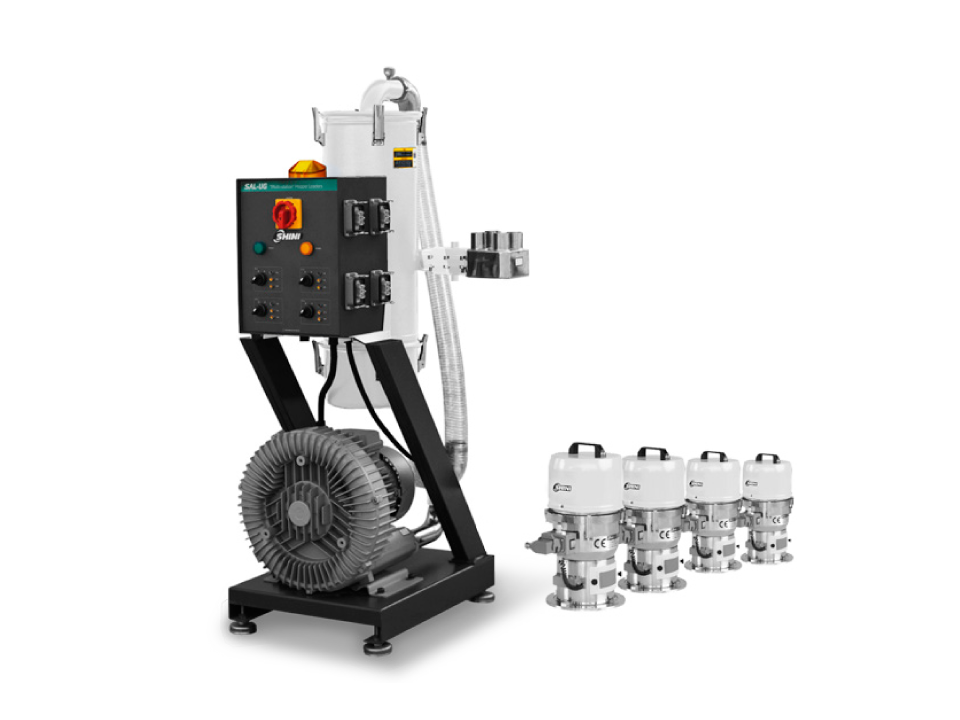

Multi-station-Hopper-Loaders-SAL-UG122/124

Read OnlineRead Online DownloadDownload InquiryInquiry

    • Material Suction Blower

      High pressure blower; the power source of material conveying.

    • Filter

      There will be some dust during the conveying process of materials. This filter is helpful for removing dust and thus to prevent material contamination.

    • Vacuum Breaking Valve

      Helpful for avoiding frequent startup of material suction machine during material suction cycle to improve the service life of blower.

    • Control Panel

      LCD screen + microcomputer controller ensures intuitive display and simple operation
    Collocated with two or four European vacuum hopper receivers SHR-U-S, it is suitable for conveying plastic materials of several dehumidifying dryers (such as two-in-one SDD). Besides, the machine also can achieve "One-to-Two" or "One-to-Four" material conveying to different injection moulding machines or hoppers, thus greatly saving the costs.

    Features

    • LED touch panel for simple operation
    • One main vacuum unit for 2 or 4 hopper receivers, suitable for height or long-distance conveying.
    • Two-stage cyclone and filter technology with large dust bin for quick and easy maintenance.
    • Standard vacuum breaking valve for quick material discharge, maximize load, and energy consumption.
    • 5HP and above models are equipped with auto spraying device to reduce the cleaning frequency
    • Standard 485 interface for remote monitoring to realize auto production
