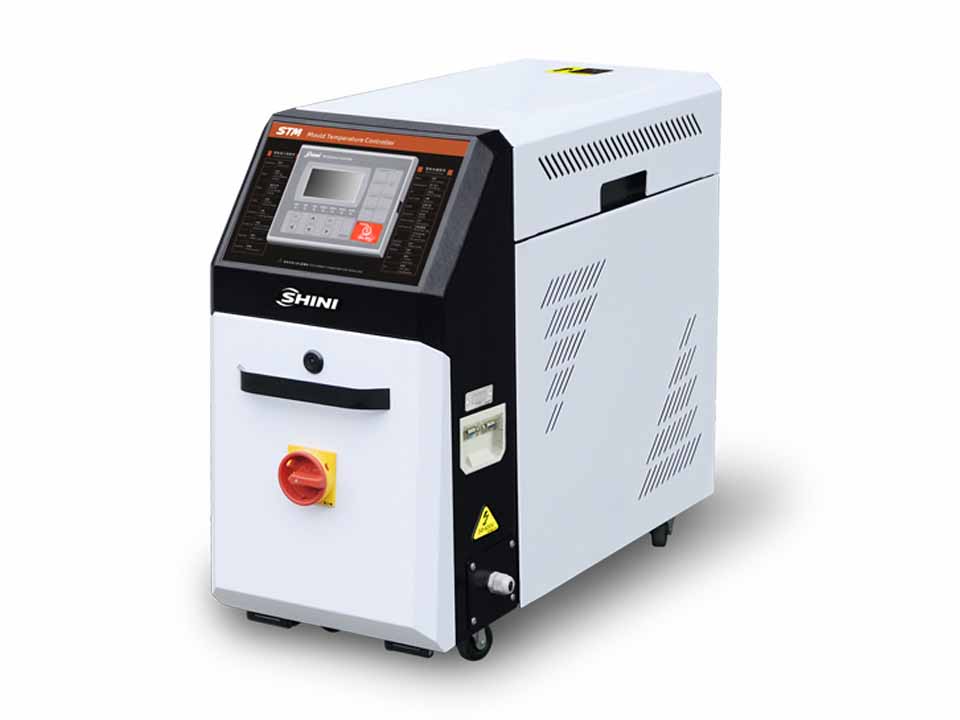

Dual-purpose Water/Oil Heaters - STM-W/O

0%
    STM-W/O series of dual-purpose heaters are mainly used to heat up the mould and maintain its temperature, although they can be also used in other similar applications. High temperature water or oil return from the mould is cooled by indirect cooling and then sent to the pipe heaters via high - pressure pump for heating to a constant temperature. This unique design allows user to choose between water and oil as heat transfer medium. With our optimized design, the HANYOUNG temperature controller can maintain an accuracy of ±0.5℃.

    Features

    • Controller adopts 3.2 " LCD for easy operation.
    • Equipped with the design of 7-day automatic start/stop timer. LCD screen can be converted between Chinese and English. The unit of temperature can be converted between ℉ and ℃.
    • P.I.D. multi-stage temperature control system can maintain a mould temperature with accuracy of ±1℃. Controller adopts 3.2 " LCD for easy operation.
    • Equipped with the design of 7-day automatic start/stop timer. LCD screen can be converted between Chinese and English. The unit of temperature can be converted between oF and ℃.
    • Adopt high efficiency, high temp. vertical dual-purpose pump to ensure stable performance and great pressure.
    • Multiple safety devices can automatically detect abnormal performance and indicate this via visible alarm.
    • Attractive appearance, easy to access and maintain.
    • Inner parts made from stainless steel to ensure corrosion-free operation.
    • Maximum temperature of 95℃ for water and 160℃ for oil.
    • Automatic cooling water supply and mould purging facility as standard.
    • Water manifolds, Teflon hose and Transfer oil are optional.
    • Upon request, it can be built to comply with worldwide electrical safety standards (For example : CE, UL, CSA, JIS etc.).
    • RS485 communication function is optional. Display of mould temperature and mould return water temperature is optional.
