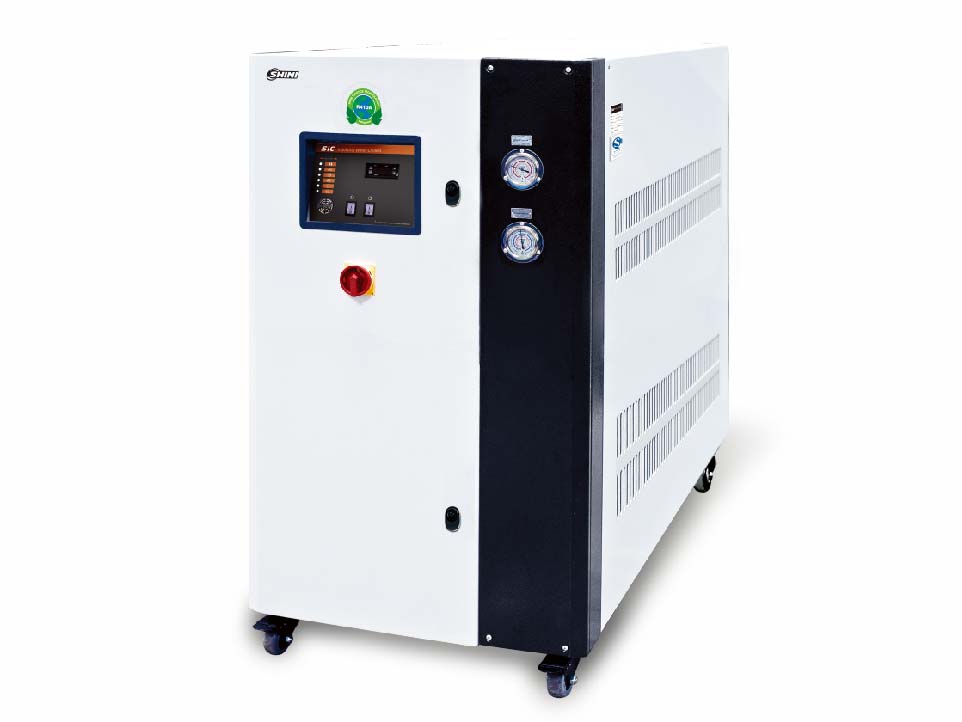

“Budget”Water-cooled Water Chiller -SIC-W-EB

Read OnlineRead Online DownloadDownload InquiryInquiry

  • compressor

    The core of the refrigeration system, highly efficient scroll compressor from a well-known manufacturer.

  • condenser

    Use water to cool down, and condense the high-temp. and high-pressure gas from the compressor, and condense it into liquid.

  • evaporator

    Make the low-temp. condensate
    exchange heat with the external medium, gasify and absorb heat to reduce the medium temp.
SIC-W-EB series are applicable for cooling moulds to reduce products molding cycle time; also they are available in the cooling of equipments in order to maintain a normal temperature. Besides, they are suitable for other industries with the need of cooling.

Features

  • Cooling range 7~25℃.
  • Environmentally insulated water tank, with prolonged service life and free of contamination.
  • Adopt R410 A refrigerant with good refrigeration effect.
  • Refrigeration loop controlled by high and low pressure switches for accurate detection of system pressure.

  • The compressor and pump both have current protection function

  • Shell and tube condenser with quick heat conduction and good dissipation effect.
  • Adopt tube and shell evaporator.The SUS304 pipe is directly mounted on  water tank that is economical and practical.

  • Adopt microcomputer control for precise temperature control.
